Extreme Portability & Hassle-Free
—Measure flow in just 40 seconds.

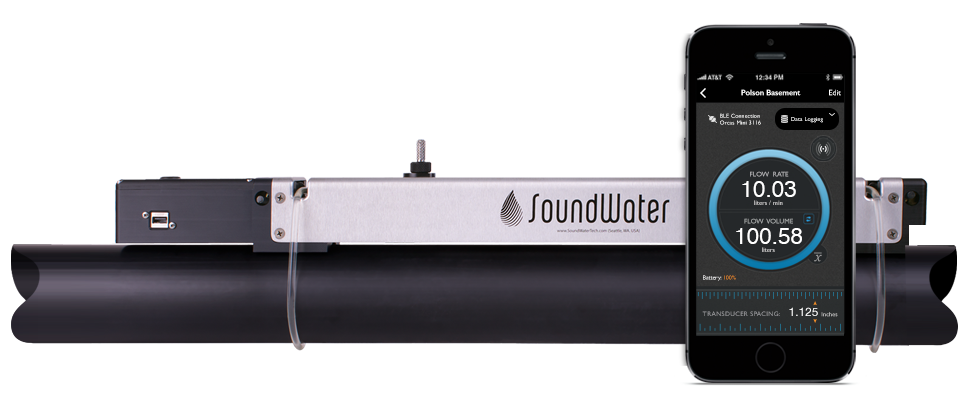

What’s Orcas?
The Orcas Flow Meter solution starts with the Orcas App (downloadable from app stores) and works on both iOS and Android devices. The companion, Orcas Sensor, is a compact clamp-on ultrasonic transducer device that mounts on the outside of your pipe—sensing through the pipe wall—and wirelessly transmits flow measurements.
The Orcas App guides you through pipe and liquid parameter selection and input, and then lets you know how to set transducer spacing using the integrated ruler.
Instead of using awkward hose clamps, the Orcas Sensor attaches to pipes with a handy, integrated urethane cord and Cam Cleat. Readings are transmitted to your mobile device for display.
Got your reading? Snap the cords out of their cleats and you’re ready to move on to your next measurement. Next time you return to this location, the Orcas App will remember your settings.
All you need is the lightweight Orcas sensor and a mobile device. Measure flow in 40 seconds!
The Orcas App remembers locations and pipe parameters, so you’ll only set them once for each measured location.
The intuitive interface and pre-loaded pipe specifications make it easier to get the right settings.
Orcas is typically accurate within ±1.0% to 2.0% (depending upon the application), with a wide operating range and no pressure drop.
With all its advantages, Orcas is priced competitively with comparable (but bulkier) devices.

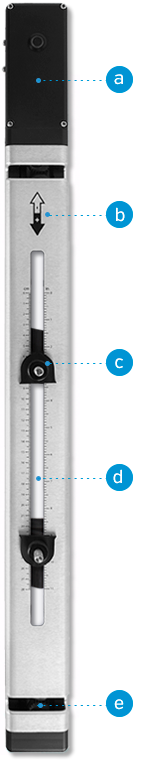

Engineered for Reliable, Everyday Use
a On-board Electronics
There’s no need for a separate, bulky box or cumbersome wires.
b Bi-Directional Sensing
Mount once, measure both directions.
c Movable Acoustic Transducers
Mount the sensor once, then fine-tune transducer placement.
d Integrated Ruler
No need to carry a separate measuring tape or rule, making set-up a snap.
Sensor-Mounted Cam Cleats
Mounting the sensor is quick and easy: place, wrap, pull, done.
Highly Portable
Install on the outside of your pipe and senses through the pipe wall. No need to modify pipes.
Accurate
Measures -20 to 20 ft/s (-6 to 6 m/s). Typically accurate to within 2.0% or less (depending upon pipe size and application).
Rugged
IP65 splash-proof, weather- and corrosion-resistant. Operable in ambient and flow temperatures from -20 to 150F (-20 to 65C).
Long Battery Life
Use continuously for 12+ hours on a single charge. USB charging cord included.
Bluetooth Connectivity
The Orcas sensor and your mobile device communicate reliably, without wires.
Built-In Data Logging
Conveniently record flow for as long as 14 days or as little as one minute.

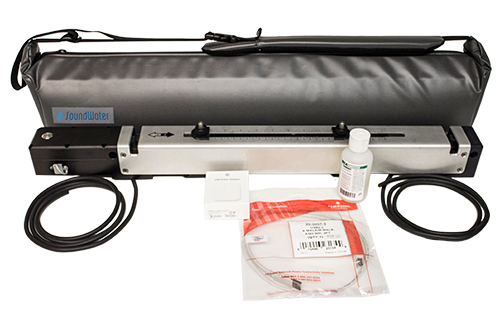

Lightweight, Weatherproof Case
Take your Orcas anywhere with confidence and ease.
FCC Approved

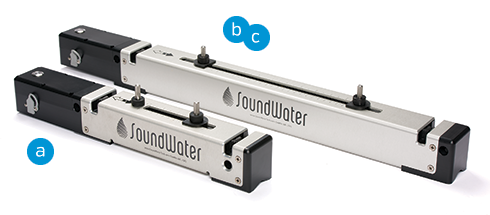

a Orcas Mini
Ideal for pipes ranging in size from 1" to 4.5".
b Orcas Standard
Ideal for pipes ranging in size from 2" to 12".
c Orcas Extended
Ideal for pipes ranging in size from 2" to 18".
The Orcas App: Intuitive, Efficient, Accurate
Quick, Accurate Setup
You have almost all setup parameters from pre-loaded, drop-down menus—so you go faster and risk fewer errors.
Bluetooth-Enabled
The Orcas App automatically connects to your Orcas Sensor through your device’s Bluetooth technology.
Always Improving
The Orcas App also lets you provide input and feedback to SoundWater so we can continually enhance its capabilities—and those enhancements arrive regularly on your device via simple App update.
Save and Re-use Location Settings
Ideal for repeated periodic checks.
Accurate
The Orcas App automatically filters flow data, then uses an advanced proprietary signal processing techniques to calculate flow.
English or Metric Measurements
Pre-loaded, input and displayed values in your system of choice.
Start simplifying your portable flow measurement processes today. To learn more about Orcas or to request a quote, contact us at any time.
