Links to your system for flow readings anywhere.
—And fast, easy install!
What’s Cypress?
Now you can capture accurate and reliable flow readings with any SCADA, PLC system, or the Ayyeka Wavelet™ with less hassle and in less time—wherever you need a flow or volume measurement.
No wires. No bulky electronics box to lug around. Your ultrasonic sensor hardware installs on the outside of your pipe in a snap—and senses through the pipe wall. Your mobile device helps you set up the hardware and displays readings. So you’ll get your job done more quickly, every time.

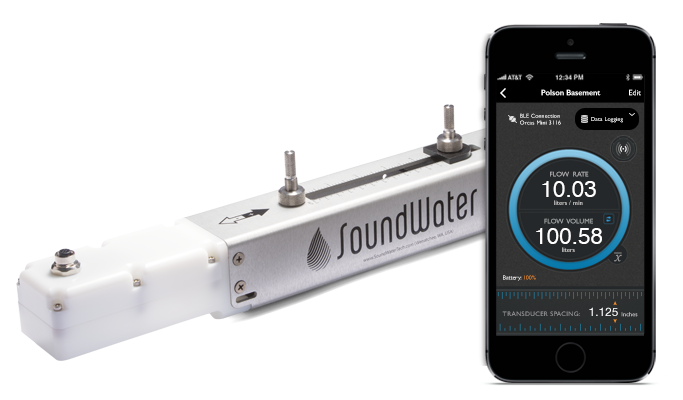

The Cypress Flowmeter solution starts with the Orcas App (downloadable from the app stores) and works on both iOS and Android devices. The companion Cypress Sensor is a compact, clamp-on ultrasonic transducer device that transmits flow measurements to your system (via pulse, 4-20mA, MODBUS RTU, or cellular data collection).
The modular nature is a combination of the fast, easy install of a portable flowmeter plus external power and communications for permanent installations. Cypress has the best of both worlds—making your job fast, easy, and hassle free.
Need an IoT web interface and cellular data collection? Simply combine the Cypress with Ayyeka Wavelet.
The clamp-on ultrasonic sensor design mounts onto the outside of your pipe and senses through the pipe wall. It can be installed in seconds, and is the only piece of hardware you transport.
Easily connect power and communications using a robust M12 circular connector. A standard 4-20mA, MODBUS RTU, or pulse output transmits data to your SCADA, PLC or other third-party hardware for capturing flow.
The intuitive interface and pre-loaded pipe specifications make it easier to get the right settings.
Cypress is typically accurate within ±1.0% to 2.0% (depending upon the application and pipe size), with a wide operating range and no pressure drop.

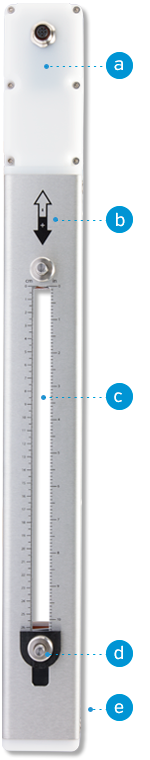

All-in-One Single Piece Hardware–
Installs on the Outside of Your Pipe
a On-board Electronics
There’s no need for a separate, bulky box or cumbersome wires. Connect 4-20mA, pulse, or MODBUS RTU output to your system.
b Bi-Directional Sensing
Mount once, measure both directions.
c Movable Acoustic Transducers
Mount the sensor once, then fine-tune transducer placement.
d Integrated Ruler
No need to carry a separate measuring tape or rule, making set-up a snap.
Sensor-Mounted Cam Cleats
Mounting the sensor is quick and easy: place, wrap, pull, done.
No Bulky Electronics Box to Lug Around
Install on the outside of your pipe and senses through the pipe wall. No need to modify pipes.
Accurate
Measures -20 to 20 ft/s (-6 to 6 m/s). Typically accurate to within 2.0% or less (depending upon pipe size and application).
Rugged
IP65 splash-proof, weather- and corrosion-resistant. Operable in ambient and flow temperatures from -40F to 180F (-40 to 80C).
Bluetooth Connectivity
The Cypress sensor and your mobile device communicate reliably, without wires.
Built-In Data Logging
Conveniently record flow for as long as 14 days or as little as one minute.
Lightweight, Weatherproof Case
Take your Cypress anywhere with confidence and ease.
FCC Approved

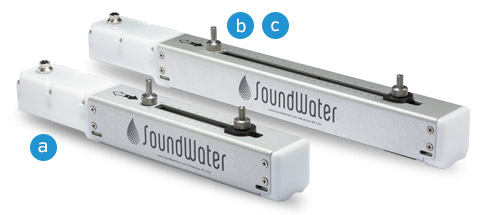

a Cypress T42-C5
Ideal for pipes ranging in size from 1" to 4.5".
b Cypress T41-C11
Ideal for pipes ranging in size from 2" to 12".
c Cypress T31-C11
Ideal for pipes ranging in size from 2" to 18".
d Cypress T31-CM11
Ideal for pipes ranging in size from 6" to 36".

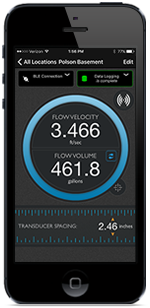

The Orcas App: Intuitive, Efficient, Accurate
Quick, Accurate Setup
You have almost all setup parameters from pre-loaded, drop-down menus—so you go faster and risk fewer errors.
Bluetooth-Enabled
The Orcas App automatically connects to your Orcas Sensor through your device’s Bluetooth technology.
Always Improving
The Orcas App also lets you provide input and feedback to SoundWater so we can continually enhance its capabilities—and those enhancements arrive regularly on your device via simple App update.
Save and Re-use Location Settings
Ideal for repeated periodic checks.
Accurate
The Orcas App automatically filters flow data, then uses an advanced proprietary signal processing techniques to calculate flow.
English or Metric Measurements
Pre-loaded, input and displayed values in your system of choice.
Start simplifying your portable flow measurement processes today. To learn more about Cypress or to request a quote, contact us at any time.
(509) 899-7836
