Touch-Screen, Wall-Mount Control
—Fast, easy install.
What’s Camano?

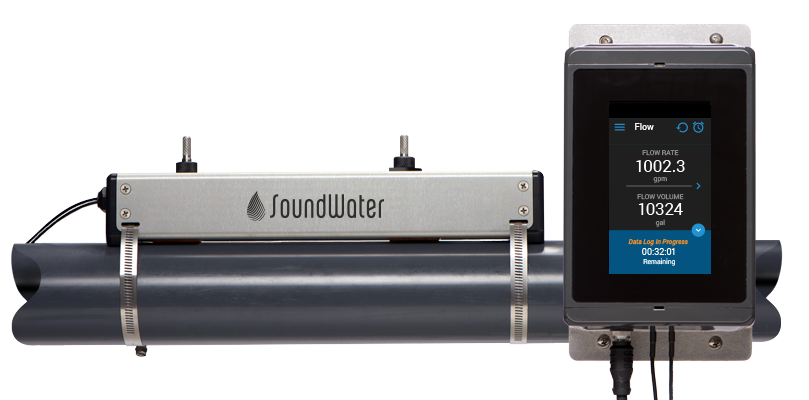

New from SoundWater, Camano is a powerful, dedicated ultrasonic flowmeter that’s accurate, easy to use, and a snap to set up—and that’s just for starters. Camano is engineered to accept ongoing enhancements as applications and capabilities evolve.
Quick to install. Flexible brackets let you quickly and easily wall-mount the Camano control unit. The Camano Sensor mounts quickly and easily—outside the pipe—using standard straps.
Connect with your SCADA & PLC. Camano can deliver a range of outputs, including MODBUS, 4–20 mA, 0–10 V, pulse, and digital alarms to your automated systems. You can set digital alarms for high/low flow, open circuit, and low signal events. Use the built-in USB port for thumb drive-based data logging downloads at any time.
Works with cellular data. Simply combine Camano with the Ayyeka Wavelet TM to seamlessly transmits flow data from your Camano using mobile networks—and you access your data through any web browser.
The Android app interface simplifies setup and daily use. Intuitively interact with your flowmeter - touch, swipe, and tap. The power of Android provides you with the highest level of guidance, feedback, and simplicity.
Output flow data—in a range of analog or digital formats—plus alarms/alerts can be automatically transferred to your automated systems.
For remote applications, make Camano an IoT device by adding the Ayyeka Wavelet. Wavelet seamlessly transmits flow data from your Camano using mobile networks—and you access your data through any web browser.
Use the included cable to connect the control unit to the Camano Sensor. Power connections are just as easy—cable is included—and linking to your automated systems is both fast and flexible.

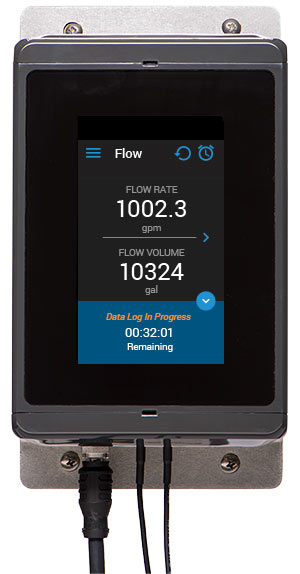

Intuitive Touch-Screen Display
The built-in, touchscreen is your access to the Camano app, with its familiar Android-app user experience. Swipe, tap, scroll, and (if needed) use an on-screen keyboard to specify application parameters.
Pre-set menus, plain-language dialogs, and intuitive navigation let you easily choose from pre-loaded pipe and fluid data (or enter your own)—no more complex codes or cumbersome keystrokes. In seconds, Camano displays optimal transducer spacing and flow measurements.
Easily integrated into automated systems.

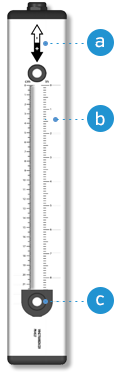

a Bi-Directional Sensing
Mount once, measure both directions.
b Integrated Ruler
No need to carry a separate measuring tape or rule, making set-up a snap.
c Movable Acoustic Transducers
Mount the sensor once, then fine-tune transducer placement.
Sensor-Mounted Cam Cleats
Mounting the sensor is quick and easy: place, wrap, pull, done.
Accurate
Measures -20 to 20 ft/s (-6 to 6 m/s). Typically accurate to within 2.0% or less.
Rugged
IP65 splash-proof, weather- and corrosion-resistant. Operable in ambient and flow temperatures from -20 to 150F (-20 to 65C).
Connects Easily to Your System
Camano comes fitted with a robust, 5-pin M12 circular connector for wiring to your PLC, SCADA, flow controller or custom process hardware. Camano gets external power for continuous use, and delivers pulse output-so your systems can record flow.
Conveniently record flow for as long as 14 days or as little as one minute.
FCC Approved
a — For 8" to 18" pipe (requires 2)
b — For 1" to 4.5" pipe
c — For 2" to 12" pipe
